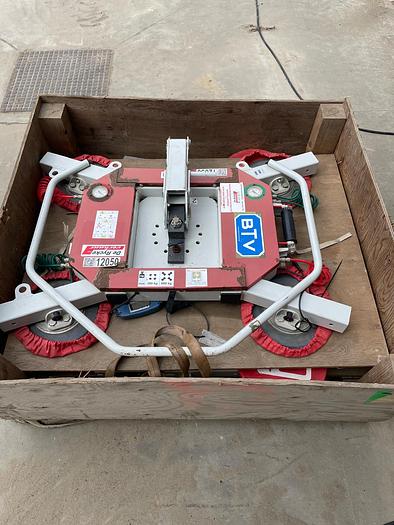

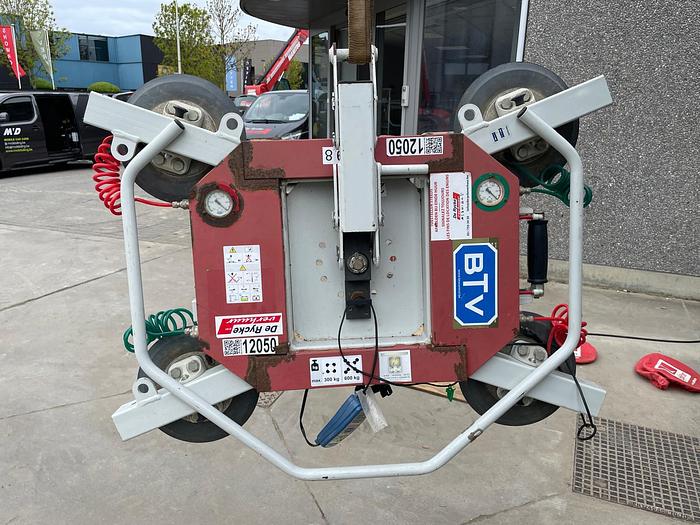

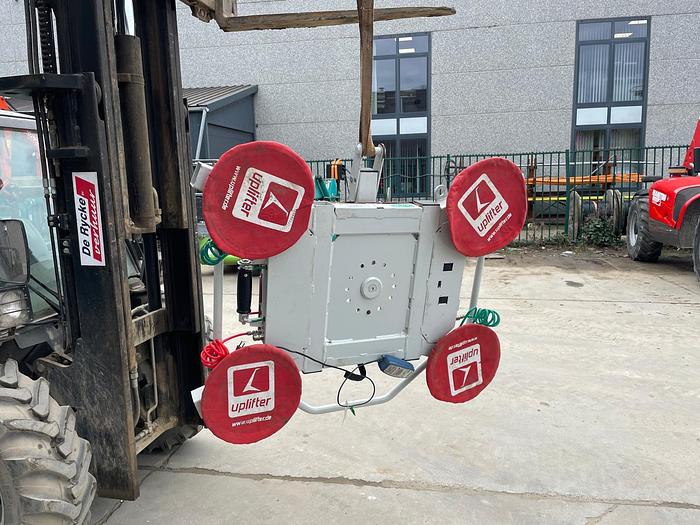

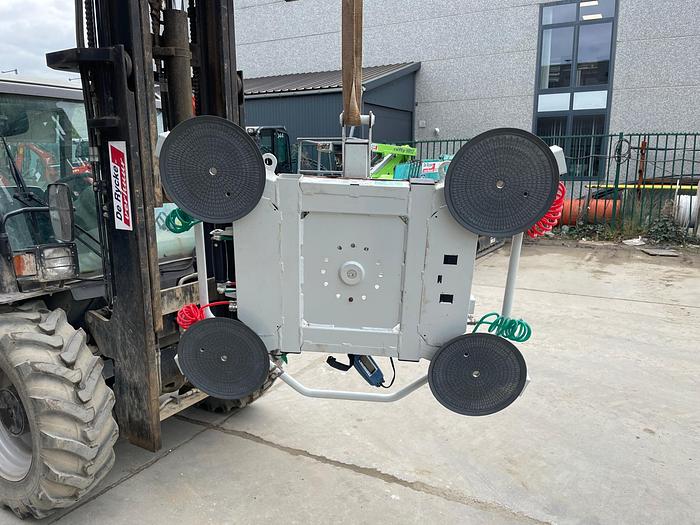

2019 Uplifter UPG 600-2

2019 Uplifter UPG 600-2

€3,000 Excl. VAT

Description

Suction Disc UPG 600-2

  • Manual tilting up to 90°.
  • Manual rotation up to 360°.
  • Silicon-free vacuum cups (Ø 300mm).
  • Off-grid motor with 12-volt rechargeable battery.
  • Integrated vacuum reserve tank.
  • Individual arrangement of the spring-mounted vacuum cups.
  • Vacuum cups adjustable without tools.
  • Complies with DIN 13155 standards.
  • Optical/acoustic warning devices (low vacuum warning buzzer).


Technical Data:

  • Vacuum System: 2-circuit system.
  • Lifting Capacity: Up to 600 kg.
  • Vacuum Cups: Available in configurations of 4, 6, or 8 cups.
  • Tare Weight: Ranges from 70 kg to 89 kg.
  • Minimum Height: Without load arm: minimum 139 mm; with load arm: minimum 205 mm.
  • Operating Temperature: 0 up to 40°C.
  • Operating Time: Up to 8 hours.

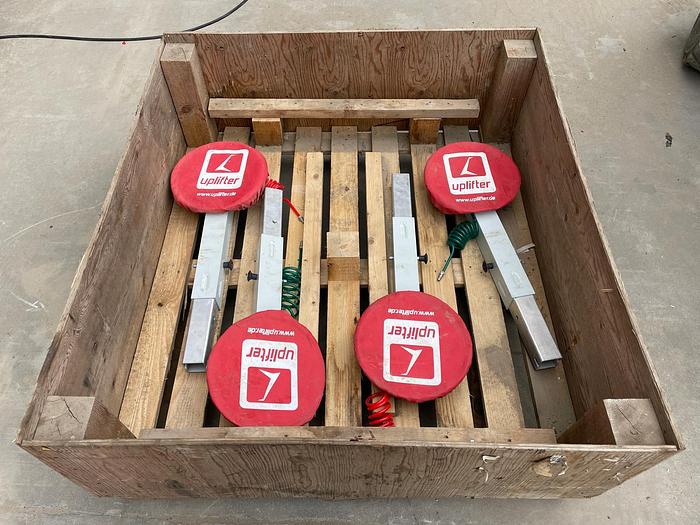

  • Accessory: Includes a wooden transport box.


Specifications

ManufacturerUplifter
ModelUPG 600-2
Year2019
ConditionUsed
Serial Number12050
Reference Nr.DR2998
